VERTEX is a contemporary home design built around a central courtyard. This 5,607 sq ft residence uses distinct architectural volumes to create privacy while maintaining spatial connection. Floor-to-ceiling glass and natural materials bring abundant light deep into the interior while framing courtyard views from multiple vantage points. Upper-level terraces extend living spaces vertically.
Three bedrooms and three bathrooms are distributed around the courtyard, ensuring each space receives natural light. Open living areas flow directly to outdoor spaces, blurring boundaries between inside and out.
3 bedrooms | 3 bathrooms | 2 powder rooms | 5,607 sq ft | Central courtyard | Upper terraces | Volumetric design
Package Description
$6,900.00
Request a Complimentary Consultation
With an Architect, Interior Designer, or General Contractor
EXPLORE THE DESIGN
Basic specifications
Floors (Levels)
2
Bedrooms
3
Bathrooms
3
Powder Rooms (PWDR)
2
Total Number of Bathrooms
4.0
Foundation Type
Slab
Building Type
Single Family
Building Area (sq ft)
5607
Lot Information
Lot Area (Acre)
1/4
Lot Depth (ft)
156.0
Lot Width (ft)
138.0
Lot Shape
Irregular
Topography
Flat
Location
Suburban
Structure & Construction
Roof Type
Sloped
Roof Pitch
1/2:12, 3/4:12, 2:12, 4:12
Floor Layout Area
Lower Floor (sq ft)
0
Main Floor (sq ft)

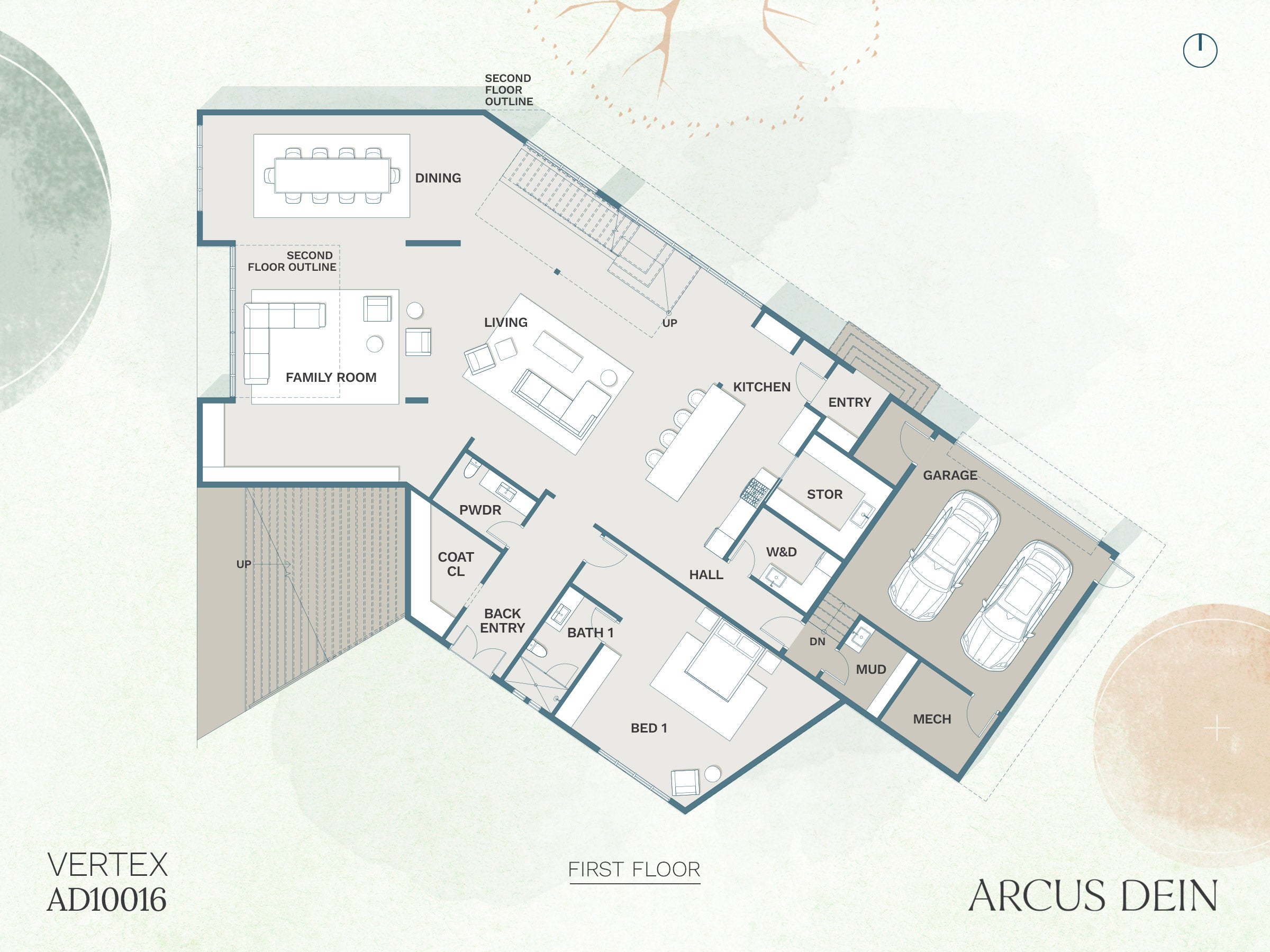

3274
Second Floor (sq ft)

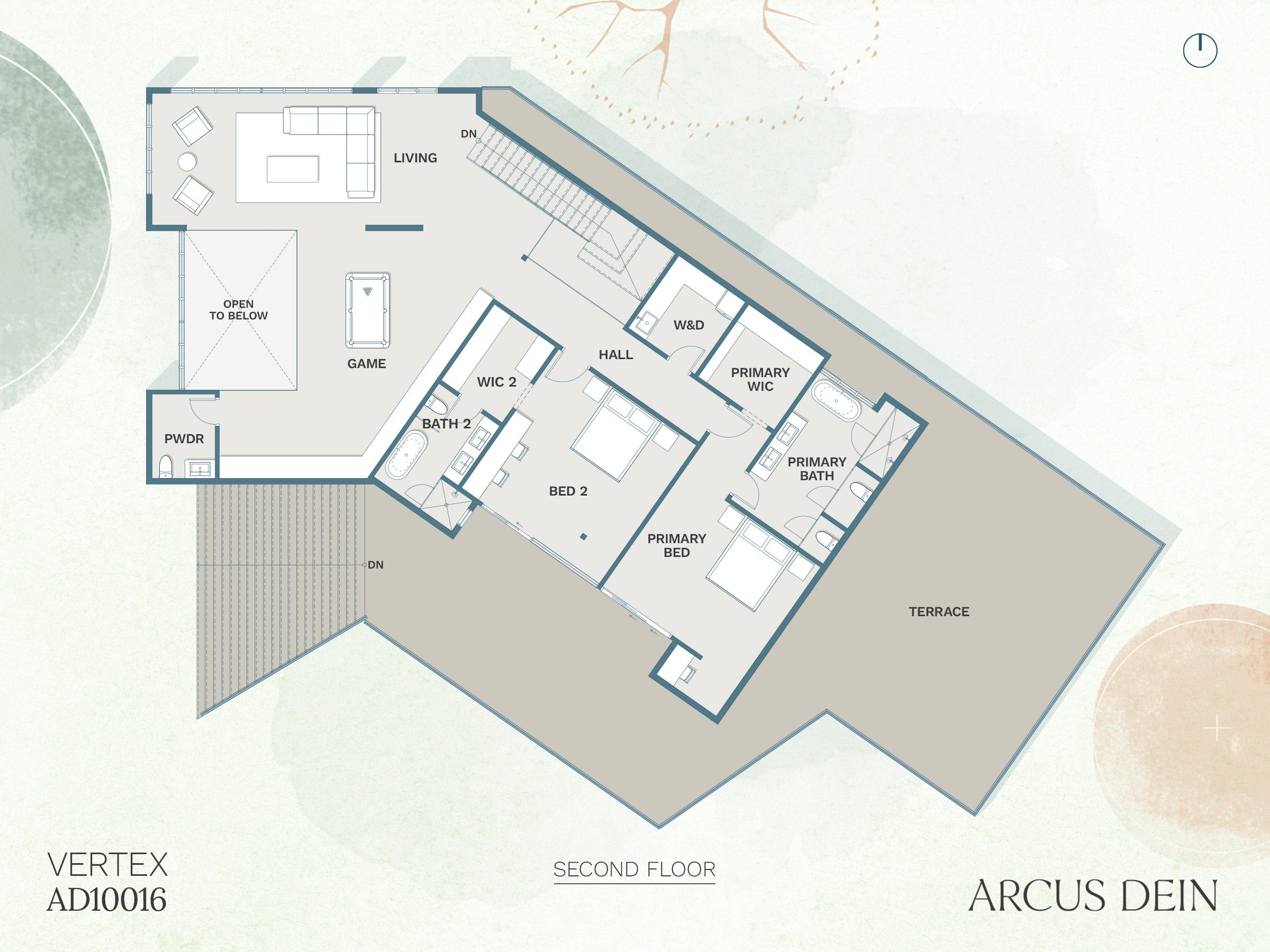

2333
Third Floor (sq ft)
0
Rooms & Spaces
Living Room
Informal
Living Room Location
1st & 2nd
Dining Room
Informal
Kitchen
Island
Family Room
Informal
Family Room Location
1st
Office
No
Laundry Location
1st & 2nd
Mudroom
Yes
Garage & Porch
Garage Type
Rear
Garage Count
2
Garage (sq ft)
473.0
Environment
Climate
Temperate
Temperature
Seasonal
INCLUSIONS
Standard package: Design Development Drawings in PDF
- Floor Plans
- Ceiling Plans
- Roof Plan
- Exterior Elevations
- Typical Sections
- Exterior 3D images (as shown here on page)
- Illustrative floor layout previews (as shown here on page)
Professional package: Design development drawings in DWG
- Includes everything in the Standard package, plus the complete DWG source files for all drawings listed above.
EXCLUSIONS
- Guaranteed compliance with every local building code (adjustments may be required depending on your municipality)
- Permitting fees, site surveys, or engineering reports (though we can assist in navigating these)
- On-site construction services (unless contracted separately through construction administration)
- Garages, porches, and unfinished areas in the living square footage calculations (these are detailed but not counted in totals)
- Furniture, accessories, and décor (offered separately as an interior design consultancy)
- Site-specific grading, foundation engineering, or specialized environmental studies (handled case by case)
